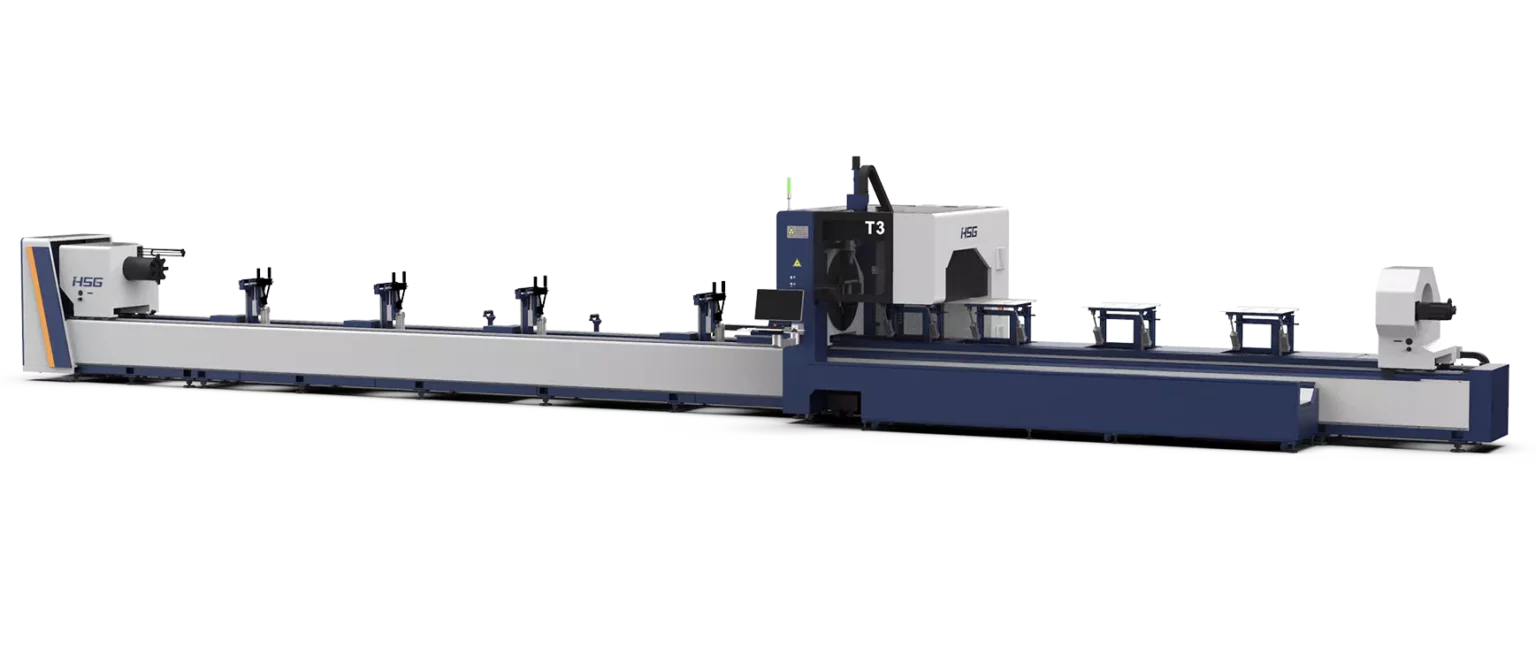

T3-Three-Chuck Heavy-duty Tube Laser Cutting Machine
- High precision cutting with independent servo follow-up support
- Unique photoelectric detection of loading for clamping accurately
- Movable triple chuck for high load capacity
- Eco-friendly cutting
High-precision Cutting With Independent Servo Follow-up Support
- 9m loading machine bed is equipped with independent and high-sensitivity servo follow-up support for strong support to heavy tubes, satisfying highly precise cutting on the horizontally.
- 6m unloading machine bed is also equipped with independent servo follow-up support, combing with intelligent unloading model of the system to achieve smooth blanking of tubes up to 6 meters.
- Combine C3 and C4 chuck together with synchronous rotation and moving
- Have functions of tube clamping, supporting and correction
- Move at full stroke
Unique Photoelectric Detection of Loading for Clamping Accurately
The tube loading is detected by photoelectricity, and the chuck can precisely control the tube clamping length, which further improves the degree of loading automation and reliability.
Movable Triple Chuck for High Load Capacity
- The R2 is equipped with square and round chucks as standard, with a load capacity of 600kg, supporting 20-350mm tubes.
- Adopt two front and one rear chuck combination to achieve higher load bearing.
- C3 is a hollow chuck, which is easy to cut the whole tube.
- Movable three-chuck structure with short tail material cutting of chuck jump
- Optional Rectangular-circle professional sealing chuck, greatly increase the load capacity of the chuck to 800Kg.

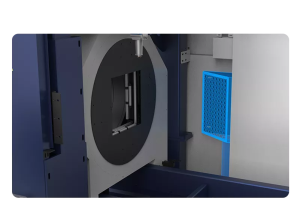

Eco-friendly Cutting
The cutting area is equipped with air extraction pipes, making the processing environment clean and providing environmental protection.

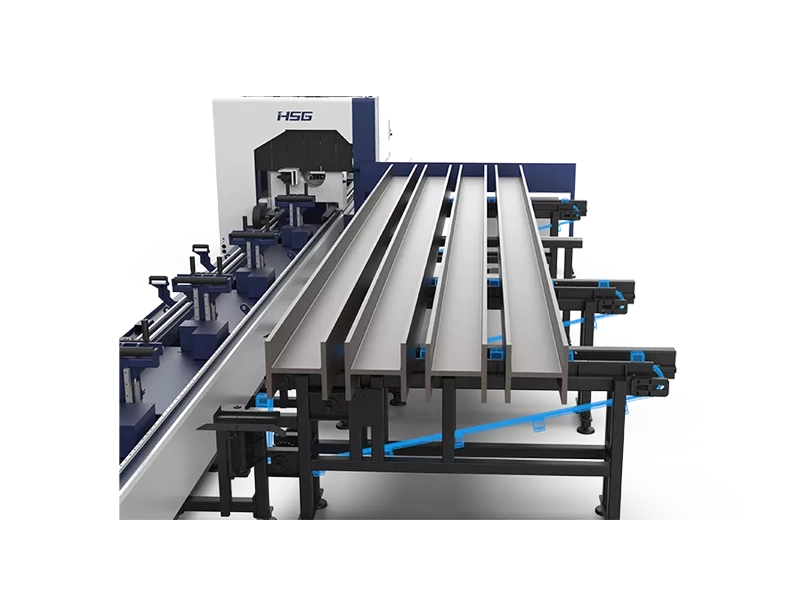

Multi-functional Loading Rack for Fast Loading (Optional)
Optional multifunctional loading frame can fulfill the automatic loading of 6-9 meters round tube, square tubes, steel sections and other tubes, achieving rapid loading of tubes, saving labor costs and improve productivity.
The T3-Three-Chuck Heavy-duty Tube Laser Cutting Machine is a sophisticated piece of industrial equipment designed for high precision and eco-friendly cutting of tubes. Its advanced features include independent servo follow-up support for precision, unique photoelectric detection for accurate clamping, and a movable triple chuck for handling high load capacities.
In Brief
- High precision cutting with independent servo follow-up support.
- Unique photoelectric detection of loading for accurate clamping.
- Movable triple chuck designed for high load capacity.
- Environmentally friendly cutting processes.
- Suitable for heavy-duty industrial applications involving tube laser cutting.
Budgeting & Pricing
Pricing estimate (USD): $500,000 – $900,000 USD
- Consider the investment in relation to production needs and output capacity.
- Budget for additional costs such as installation and training.
- Evaluate potential energy savings from eco-friendly operations.
- Account for maintenance and potential repair costs over the machine’s lifespan.
Performance / Spec Considerations
- High precision cutting enabled by independent servo follow-up support.
- Utilizes unique photoelectric detection for precise loading and clamping.
- Equipped with a movable triple chuck for handling large and heavy tubes.
- Eco-friendly cutting capabilities reduce environmental impact and operational costs.
- Designed for heavy-duty industrial use, providing robust performance.
- Integration with fiber laser technology for efficient tube cutting.
Buying Advice
- Inspect the machine for any signs of wear or damage before purchasing.
- Verify the accuracy and reliability of the photoelectric detection system.
- Ensure the triple chuck mechanism operates smoothly and efficiently.
- Confirm the machine’s compatibility with existing production systems.
- Check for availability of technical support and service agreements.
- Evaluate the energy efficiency and environmental impact of the machine.
- Request a demonstration to assess the machine’s cutting precision and speed.
- Consider the manufacturer’s reputation and the machine’s warranty terms.
- Examine the software interface for user-friendliness and features.
- Verify the machine’s compliance with industry standards and regulations.
FAQ
What is the price range for the T3-Three-Chuck Heavy-duty Tube Laser Cutting Machine? The price range is between $500,000 and $900,000 USD.
What type of laser technology does this machine use? It uses fiber laser technology.
How does the machine ensure precise clamping? Through unique photoelectric detection of loading.
What is the purpose of the triple chuck? To handle high load capacities and facilitate the cutting of large tubes.
Is the machine environmentally friendly? Yes, it features eco-friendly cutting processes.
What industries is this machine suitable for? It is suitable for heavy-duty industrial applications involving tube cutting.
Does the machine require special installation? Installation specifics should be confirmed with the manufacturer, but professional installation is typically recommended.
Can the machine be integrated with existing systems? Compatibility should be verified with current production systems.
What should be inspected before purchasing? Inspect for wear, damage, and verify the operation of key systems like the triple chuck and detection system.
Does the machine come with a warranty? Warranty terms should be confirmed with the manufacturer or supplier.
