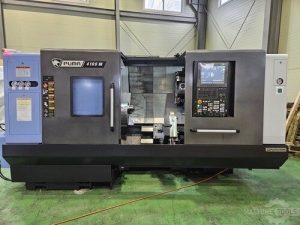

CAPACITY Chuck size: 15 inches Max. Turning Diameter: 22 inches Max. Turning Length: 39 inches Swing over Bed: 31.1 inches Bar Capacity: 4.6 inches Spindle Bore: 5.2 inches TRAVELS X-Axis Rapid Traverse: 630 ipm Z-Axis Rapid Traverse: 787 ipm X-Axis Travel Distance: 14 inches Z-Axis Travel Distance: 44 inches C-Axis Travel Distance: 360 Degrees MAIN SPINDLE Max. Spindle Speed: 2000 RPM Max. Spindle Power: 40hp Max. Spindle Torque: 1188 ft-lb TURRET No. of tool station: 12 each Rotary Tool r/min: 4000 RPM DIMENSIONS Length: 183 inches Height: 86 inches Width: 81 inches Weight: 22267 lb Equipped With: 1. Fanuc i Plus Control 2. Spindle motor power : AP60/4500_30/22 KW 3. Programmable Tail stock 4. Live center MT#6 5. Hydraulic Steady rest SLU-4Z (D30-D245) 6. Chip conveyor Right side (Hinged type) 7. Oil skimmer 8. Air conditioner 9. Tool Presetter (Automatic type) 10. Transformer Doosan Manufacturers Used Machines>Used CNC Lathes
